Retail Pharmacy Drawings

Retail Pharmacy Drawings

Fenco_LOGO-ICON_4c View all our Retail Pharmacy Models below

Fenco_LOGO-ICON_4c View all our Retail Pharmacy Models below

Narcotic Lockers

270

MODEL 270

  • Narcotics Locker
  • 3 point bolt work
  • Key locking L-handle
  • Electronic combination lock
  • Pull-out shelves with
  • adjustable dividers
  • 48”W x 37-¾”H x 22-½”D
7601-24NARC

MODEL 7601-24-NC

  • Narcotics Locker Wall Unit
  • Locking Inner Plate
  • Outer Double-Pan Doors
  • Lighted Alarm Assembly
  • To be wired by an electrician on site
  • 24”W x 30”H x 13”D

Standard Height Undercounted Steel

202

MODEL 202

  • Pedestal Unit
  • 2 Adjustable Shelves
  • Locking Cupboard Door
  • 18″W x 38-1/2″H x 19″D
203

MODEL 203

  • Pedestal Unit
  • Locking Box Drawer
  • 1 Adjustable Shelf
  • Locking Cupboard Door
  • 18″W x 38-1/2″H x 19″D
204

MODEL 204

  • Pedestal Unit
  • 2 Locking Box Drawers
  • 1 Adjustable Shelf
  • Locking Cupboard Door
  • 18″W x 38-1/2″H x 19″D
208

MODEL 208

208-24

  • Waste Receptacle
  • Locking Cupboard Door
  • 38-1/2″H x 19″D
  • 208………………………………………….18”W
  • 208-24……………………………………24”W
210

MODEL 210

  • Pedestal Unit
  • 1 Locking Box Drawer
  • 2 Legal Drawers
  • 18″W x 38-1/2″H x 19″D
212

MODEL 212

  • Pedestal Unit
  • 3 Box Drawers
  • Lock on Top Drawer only
  • 1 Legal Drawer
  • 18″W x 38-1/2″H x 19″D
214

MODEL 214

229, 268

  • Pedestal Unit
  • 5 Box Drawers
  • Lock on Top Drawer only
  • 38-1/2″H x 19″D
  • 214……………………………………………..18”W
  • 268…………………………………………….24”W
  • 229…………………………………………….36”W
222

MODEL 222

  • Pedestal Unit
  • 2 Locking Box Drawers
  • 1/4″ Frame Locker
  • 1/2″ Steel Plate Door
  • 3 Point Bolt-work
  • Keylocking L-handle
  • 1 Adjustable Shelf
  • Accepts any Fenco electronic/mechanical combination locks
  • 18″W x 38-1/2″H x 19″D
231

MODEL 231

270

  • Pedestal Unit
  • 2 Adjustable Shelves
  • Sliding Doors
  • Available with Hinged Doors
  • 38-1/2″H x 19″D
  • 231………………………………………….36”W
  • 270…………………………………………48”W
232

MODEL 232

209, 233, 234, 266

  • Open Base Unit
  • 2 Adjustable Shelves
  • 38-1/2”H x 19”D
  • 209…………………………………………….18”W
  • 233…………………………………………….24”W
  • 234……………………………………………30”W
  • 232…………………………………………….36”W
  • 266……………………………………………48”W
236

MODEL 236

272

  • Pedestal Unit
  • Sliding Doors
  • 1 Adjustable Shelf
  • 38-1/2”H x 19”D
  • 236……………………………36”W with 8 Patient Trays
  • 272……………………………48”W with 12 Patient Trays
237

MODEL 237

247

  • Pedestal Unit
  • Sliding Doors
  • 1 Adjustable Shelf
  • Available with Hinged Doors
  • Lock on Top Drawer only
  • 38-1/2″H x 19″D
  • 237……………………………36”W with 24 Patient Trays
  • 247……………………………48”W with 36 Patient Trays
238

MODEL 238

  • Pedestal Unit
  • 2 Box Drawers
  • 2 Pull-out Trays
  • Hinged Doors
  • 36″W x 38-1/2″H x 19″D
239

MODEL 239

271

  • Open Base Unit
  • Bin: 5”W x 5”H x 10”D
  • 38-1/2″H x 19″D
  • 239……………………………36”W with 24 Pic-A-Pac Bins
  • 271…………………………….48”W with 32 Pic-A-Pac Bins
240

MODEL 240

  • Sink Base Unit
  • Open Top
  • Sliding Doors
  • Complete with faucet and stainless steel sink (not shown)
  • 36″W x 38-1/2″H x 19″D

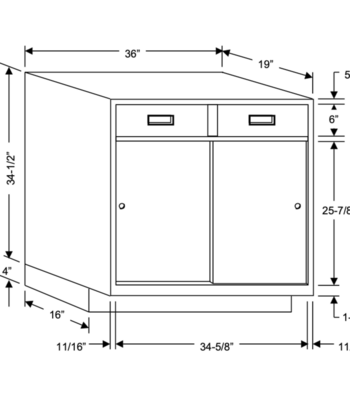

241

MODEL 241

267

  • Pedestal Unit
  • 2 Box Drawers
  • 1 Adjustable Shelf
  • Sliding Doors
  • 38-1/2″H x 19″D
  • 241……………………………………….36”W
  • 267………………………………………48”W
242

MODEL 242

  • Pedestal Unit
  • Three 8-Compartment Bottle Bin Drawers
  • 36″W x 38-1/2″H x 19″D
243

MODEL 243

  • Pedestal Unit
  • Box Drawers
  • Two 5-Compartment Bottle Bin Drawers
  • 24″W x 38-1/2″H x 19″D
251

MODEL 251

269

  • Pedestal Unit
  • 4 Box Drawers
  • 1 Adjustable Shelf
  • Sliding Doors
  • Available with hinged doors
  • 38-1/2″H x 19″D
  • 251………………………………………36”W
  • 269……………………………………..48”W
260

MODEL 260

  • Risers are used to elevate wall cabinets 14” above counter as station dividers or where there are no existing walls
  • Panels attach to either side of wall cabinet
  • Sold as a pair
273

MODEL 273

  • Sink Base Unit
  • Open Top
  • Hinged Door
  • Complete with faucet and stainless steel sink (not shown)
  • 24″W x 38-1/2″H x 19″D

Sit-down Undercounted Steel

606

MODEL 606

  • Lowboy Pedestal Unit
  • 2 Locking Box Drawers
  • 1 Legal Drawer
  • 18″W x 27-7/8″H x 19″D
608

MODEL 608

643

  • Lowboy Pedestal Unit
  • 4 Box Drawers
  • Lock on Top 2 Drawers only
  • 27-7/8″H x 19″D
  • 608………………………………………18”W
  • 643………………………………………24”W
609

MODEL 609

  • Lowboy Pedestal Unit
  • 2 Legal Drawer
  • 18″W x 27-7/8″H x 19″D
631

MODEL 631

  • Lowboy Pedestal Unit
  • 2 Box Drawers
  • 1 Adjustable Shelf
  • Sliding Doors
  • Available with Hinged Doors
  • 36″W x 27-7/8″H x 19″D
633

MODEL 633

667, 668

  • Lowboy Pedestal Unit
  • 1 Adjustable Shelf
  • 27-7/8”H x 19”
  • 633………………………………………24”W
  • 667………………………………………36”W
  • 668……………………………………..48”W
641

MODEL 641

  • Lowboy Pedestal Unit
  • 2 Box Drawers
  • 1 Adjustable Shelves
  • Sliding Doors
  • Available with Hinged Doors
  • 36″W x 27-7/8”H x 19″D

Wall/Shelving Units

301

MODEL 301

300, 317, 318

  • Open Wall Unit
  • Tray: 4”W x 2”H x 11”D
  • 30”H x 13”D
  • 300……………………………24”W with 35 Patient Trays
  • 318…………………………….30”W with 42 Patient Trays
  • 301…………………………….36”W with 56 Patient Trays
  • 317…………………………….48”W with 77 Patient Trays
302

MODEL 302

  • Open Wall Unit
  • 24 Pic-A-Pac Bins
  • Bin: 5”W x 5”H x 10”D
  • 36”W x 30”H x 13”D
303

MODEL 303

312, 314

  • Wall Unit
  • 2 Adjustable Shelves
  • Locking Hinged Doors
  • 30”H x 13”D
  • 312……………………………………….30”W
  • 303………………………………………36”W
  • 314………………………………………48”W
304

MODEL 304

  • Wall Unit
  • 2 Adjustable Shelves
  • Sliding Plexiglas Doors
  • 36”W x 30”H x 13”D
305

MODEL 305

307, 309, 311, 313

  • Open Wall Unit
  • 2 Adjustable Shelves
  • 30”H x 13”D
  • 309……………………………………….18”W
  • 307……………………………………….24”W
  • 311………………………………………..30”W
  • 305……………………………………….36”W
  • 313……………………………………….48”W
306

MODEL 306

308

  • Wall Unit
  • 2 Adjustable Shelves
  • Locking Hinged Doors
  • 30”H x 13”D
  • 308……………………………………….18”W
  • 306………………………………………24”W
310

MODEL 310

  • Wall Unit
  • 2 Adjustable Shelves
  • Sliding Steel Doors
  • 36”W x 30”H x 13”D
315

MODEL 315

  • Open Wall Unit
  • 3 Adjustable Shelves
  • 48”W x 44”H x 13”D
316

MODEL 316

  • Open Wall Unit
  • 1 Adjustable Shelf
  • 24”W x 16”H x 13”D

Free Standing Shelving & Storage Units

501

MODEL 501

518

  • Open Freestanding Unit
  • Tray: 4”W x 2”H x 11”D
  • Bin: 5”W x 5”H x 10”D
  • 84”H x 13”D
  • 501…………………………….36”W with 56 Patient Trays and 36 Pic-A-Pac Bins
  • 518…………………………….48”W with 77 Patient Trays and 48 Pic-A-Pac Bins
502

MODEL 502

503

  • Open Freestanding Unit
  • 60 Pic-A-Pac Bins
  • Bin: 5”W x 5”H x 10”D
  • 36″W x 84”H x 13”D
  • 503……………..Same as 502 with Hinged Doors and Locking L-handle
505

MODEL 505

504, 506, 507

  • Open Freestanding Unit
  • 6 Adjustable Shelves
  • 84”H x 13”D
  • 504………………………………………26”W
  • 505………………………………………36”W
  • 506………………………………………42”W
  • 507………………………………………48”W
508

MODEL 508

509, 510

  • Open Freestanding Unit
  • 6 Adjustable Shelves
  • 84”H x 16”D
  • 509………………………………………32”W
  • 508………………………………………36”W
  • 510………………………………………48”W
513

MODEL 513

511, 512, 519

  • Open Freestanding Unit
  • 6 Adjustable Shelves
  • 84”H x 8”D
  • 511………………………………………..16”W
  • 519……………………………………….24”W
  • 512……………………………………….30”W
  • 513……………………………………….38”W
514

MODEL 514

516

  • Freestanding Unit
  • 6 Adjustable Shelves
  • Hinged Doors
  • Locking L-handle
  • 84”H x 13”D
  • 514……………………………………….36”W
  • 516……………………………………….48”W
515

MODEL 515

517

  • Freestanding Unit
  • 6 Adjustable Shelves
  • Hinged Doors
  • Locking L-handle
  • 84”H x 13”D
  • 515……………………………………….36”W
  • 517……………………………………….48”W
